SHAPE FULL PLAY MINI 14.8V Overview

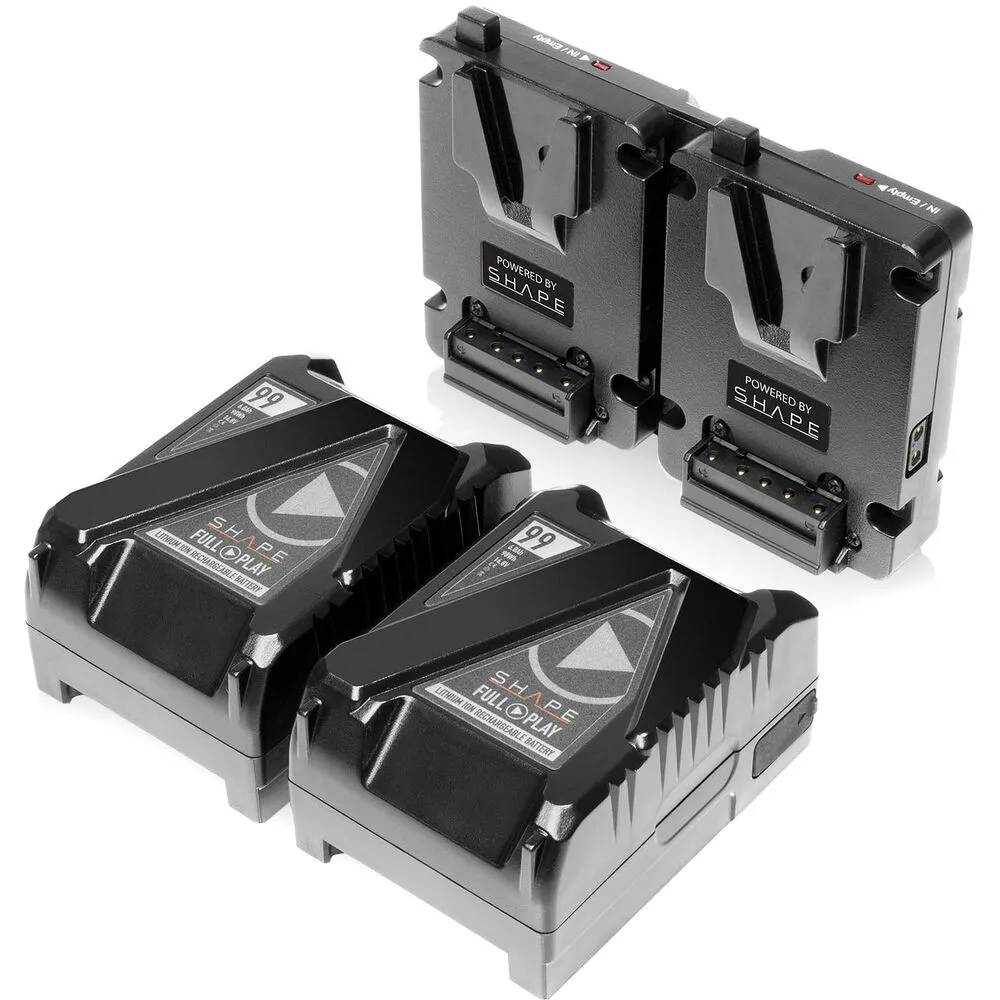

Power your camera or accessory for extended shooting days with the 2 x Mini V-Mount 99Wh Batteries & Dual Hot-Swap Battery Plate Kit from SHAPE. The kit includes two Full Play 99Wh Mini V-mount batteries and a dual V-mount to V-mount hot-swap battery plate.
Each Full Play battery can support up to 10A draws from power-hungry equipment such as lights and cinema cameras, and it provides 14.4V output, two D-Tap outputs, and two USB-A outputs to power accessories. The plate mounts both mini batteries, and the back of the plate mounts directly onto the V-mount on your device. The plate also features two 14.8V D-Tap outputs.
Power your camera, drone, gimbal, or monitor, and all your accessories using this Full Play 99Wh Mini V-Mount Battery from SHAPE. The battery features an ultracompact design that easily fits in small cameras, drones, gimbals, monitors, lights, or other lightweight pro video equipment having a standard or mini V-mount.
Power-hungry equipment supports a continuous draw of 10A and a maximum draw of 15A, and it features two D-Tap outputs to power a camera or light and two USB outputs to power small video accessories, smartphones, or on-set mobile devices. The battery has no memory effect and features temperature, current, and voltage protection. Battery capacity and charge status can be quickly checked via the LCD LED display. The battery's box-like design can be easily stacked for storage or packed away in a case for transport. It can be charged using any standard V-mount charger or SHAPE intelligent chargers.
Any standard V-mount charger or D-Tap charger
Also compatible with but not limited to:
SHAPE Portable D-Tap Travel Battery Charger (DPTCH)
SHAPE Intelligent 4-Channel V-Mount Lithium-Ion Battery Charger (V4CHA)
SHAPE Intelligent Dual V-Mount Lithium-Ion Battery Charger (V2PWC)

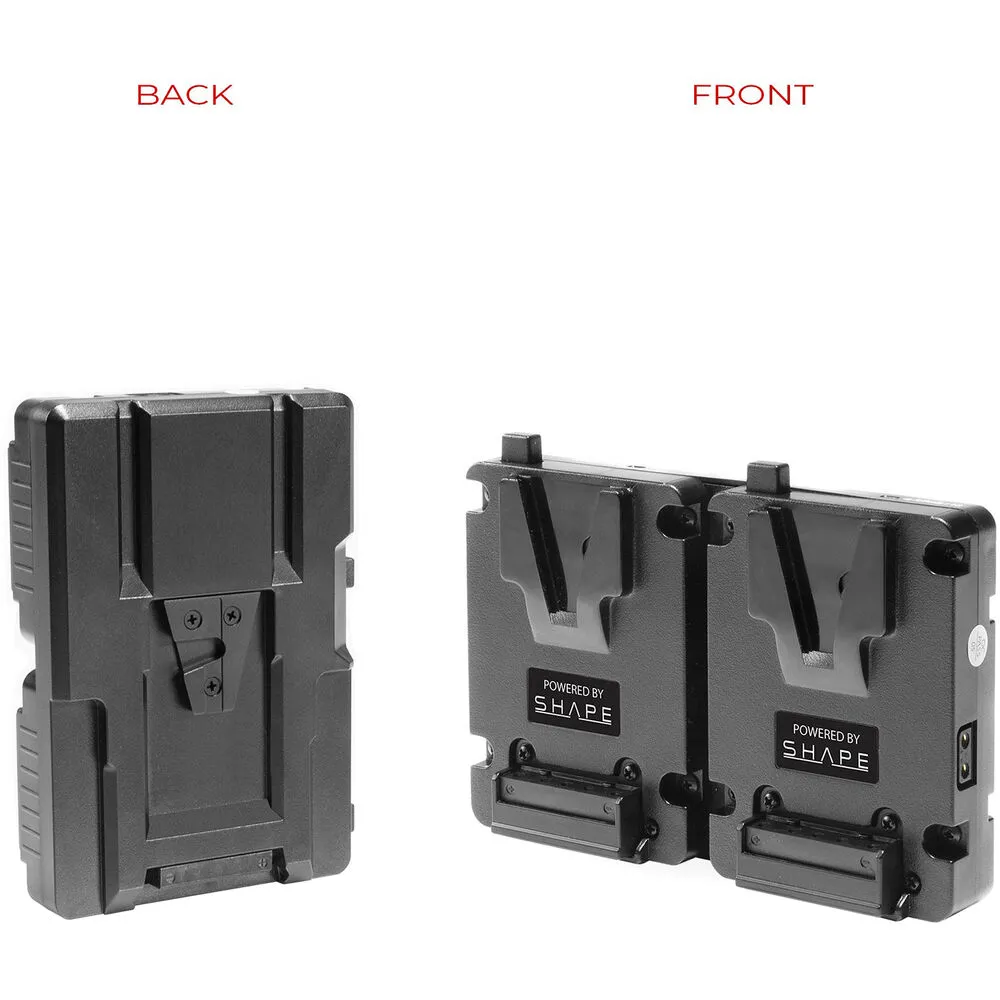

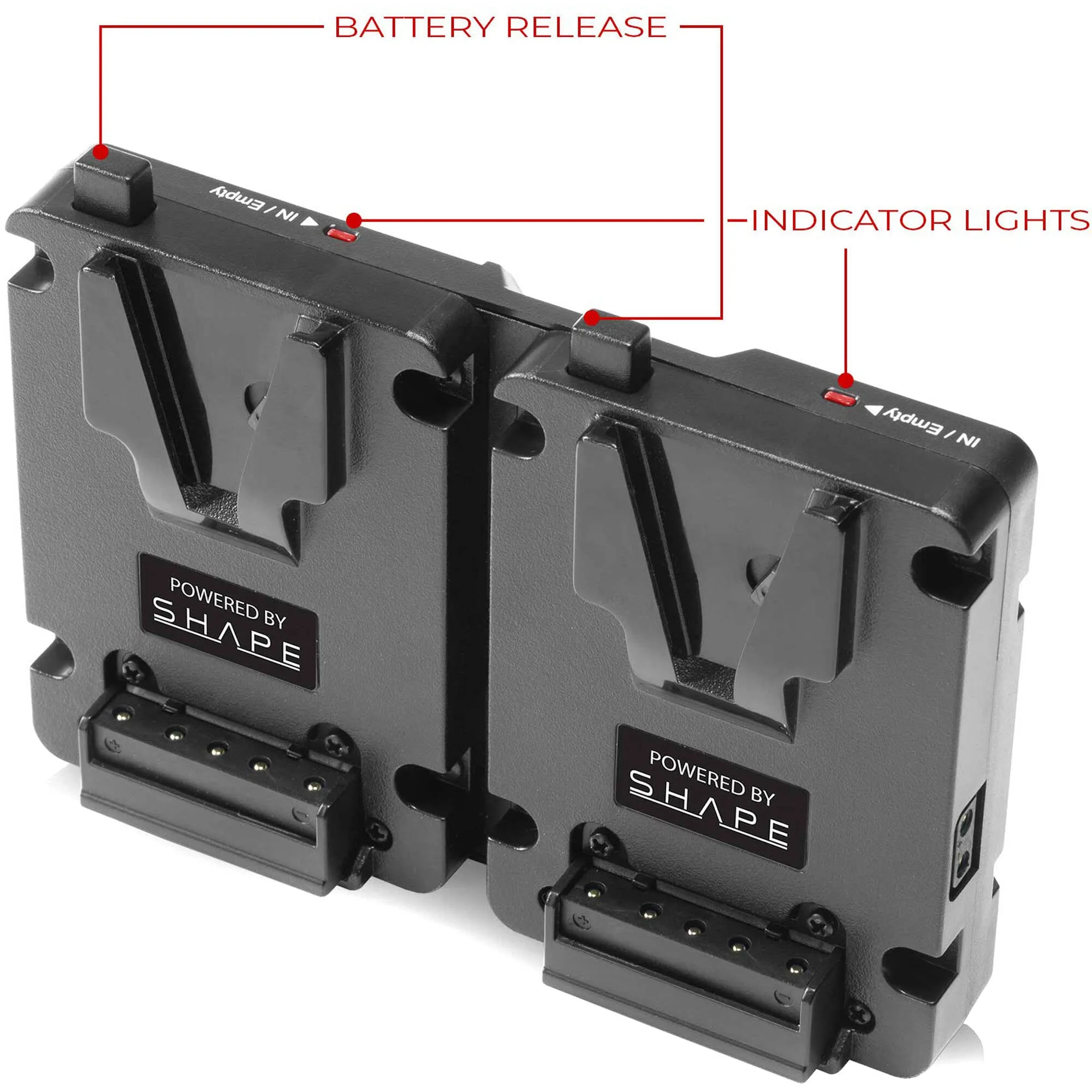

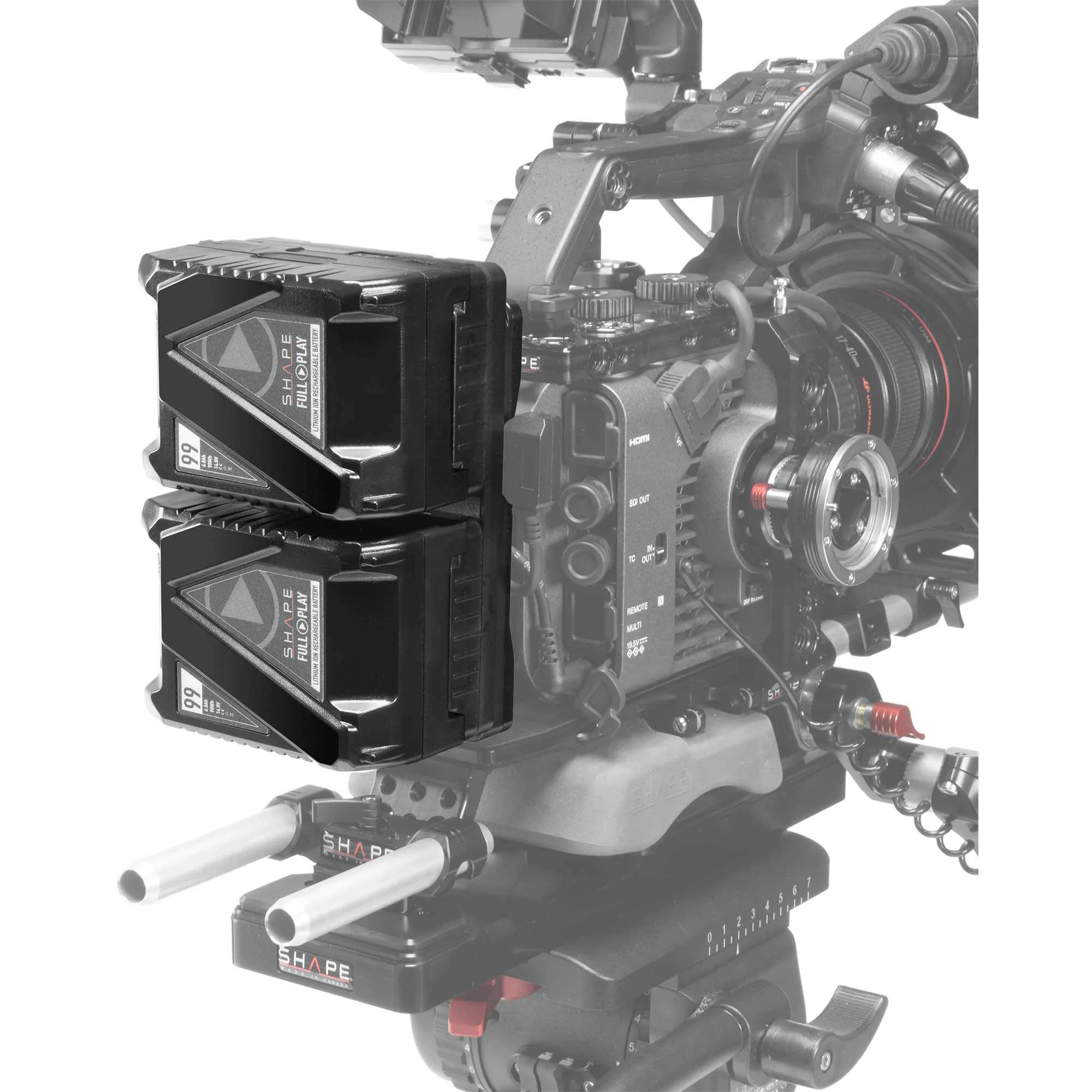

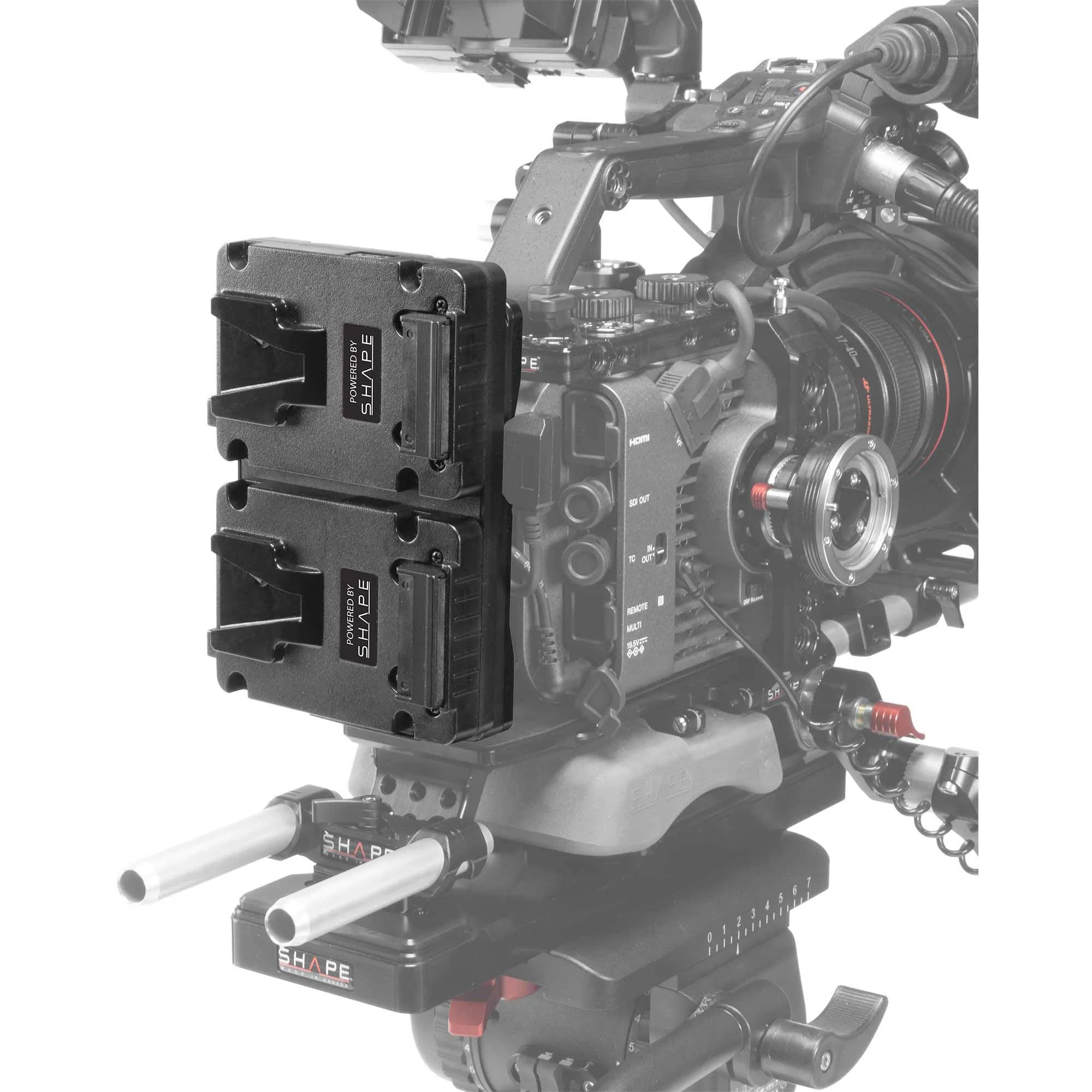

The Dual V-Mount Hot Swap Mini Battery Plate from SHAPE allows you to mount two Full Play 99Wh Mini V-mount batteries onto a standard-size V-mount plate for extended power to your camera, light, or other device.

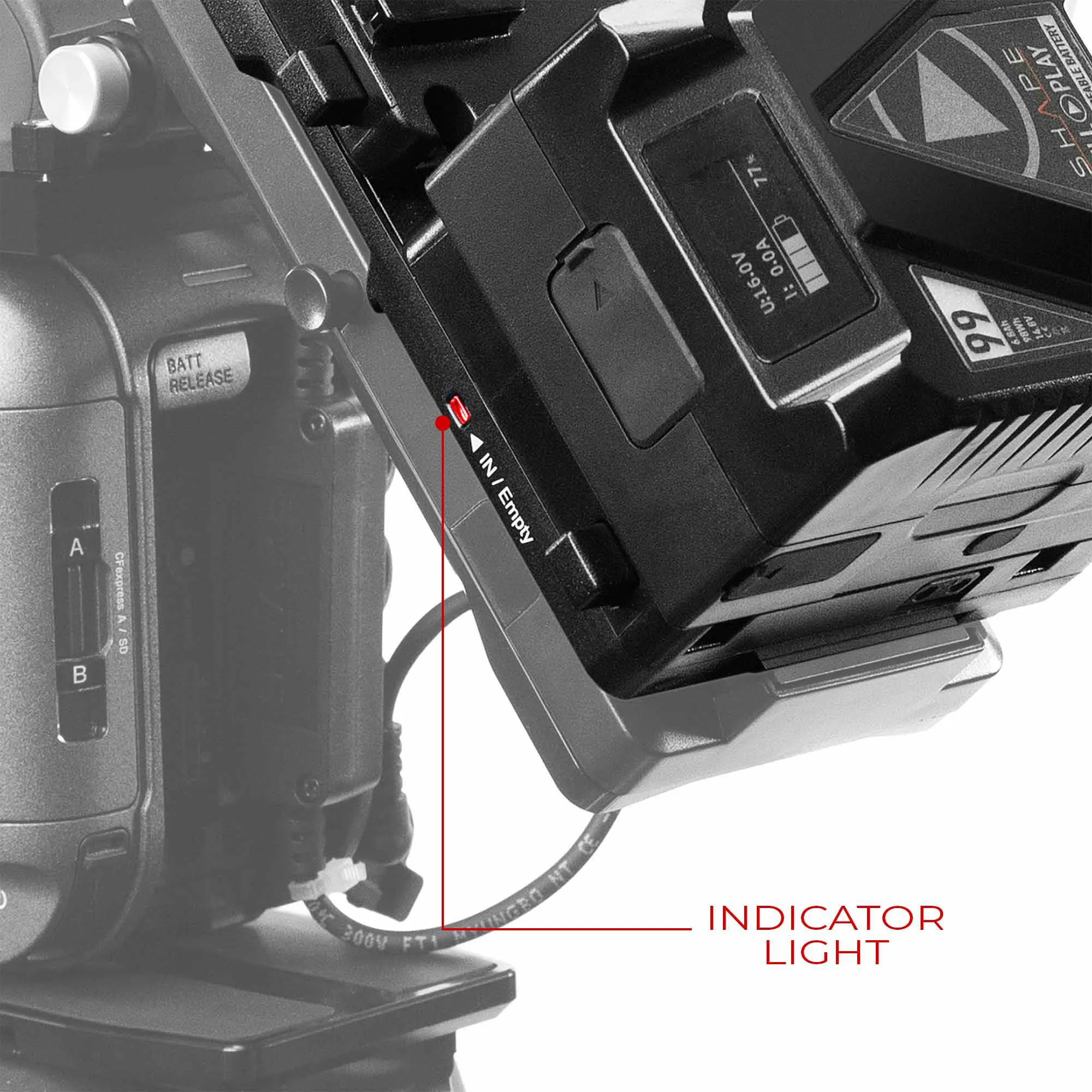

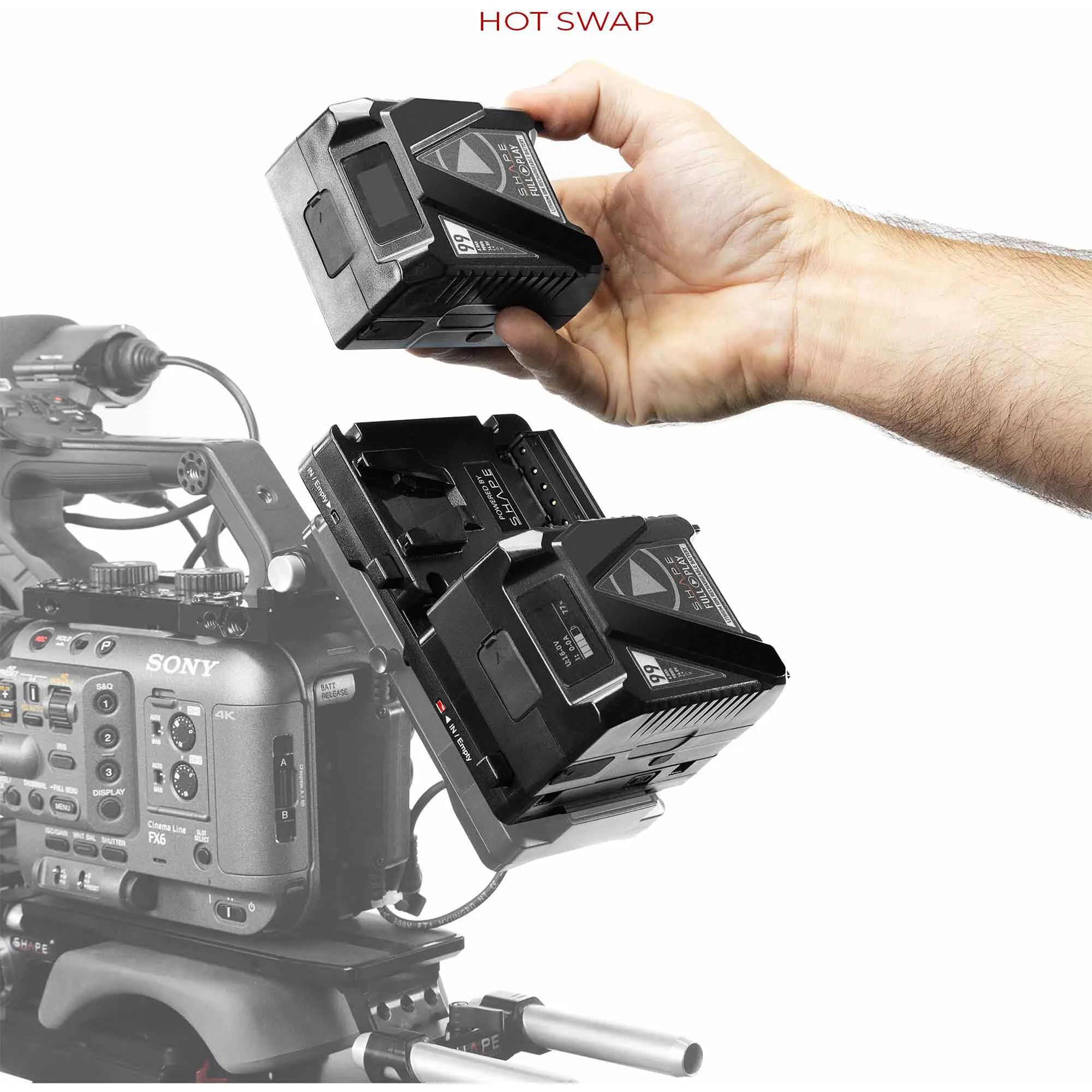

Featuring uninterruptible power supply circuitry, the plate draws power from one battery at a time, ensuring longer overall runtimes. This compact and portable plate offers two 14.8V D-Tap outputs for powering accessories simultaneously with your camera or device.
SHAPE Full Play 99Wh Mini Battery V99MB
In the Box
- 2 x SHAPE Full Play 99Wh Mini V-Mount Battery
- Limited Lifetime Warranty
- SHAPE Dual V-Mount Hot Swap Mini Battery Plate
- Limited Lifetime Warranty
SHAPE Full Play 99Wh Mini V-Mount Battery Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 99 Wh |
| Output Voltage | 14.4 VDC |
| Maximum Load | 10 A 15 A (Peak) |
| Accessory I/O | 2 x D-Tap Output 2 x USB Type-A Output |
| USB Output | 5 V, 2 A |
| Accessory Mounting Thread | None |
| Operating Temperature | 4 to 104°F / -15 to 40°C |
| Dimensions (W x H x D) | 3.9 x 2.9 x 2" / 10 x 7.3 x 5.1 cm |
| Weight | 1.2 lb / 529 g |
| Package Weight | 1.33 lb |
| Box Dimensions (LxWxH) | 4.5 x 3.4 x 2.3" |
SHAPE Dual V-Mount Hot Swap Mini Battery Plate Specs
| Camera Power Method | Battery Plate Mount Type, Connector |
| Inputs/Outputs | 2 x D-Tap |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | V-Mount Battery Plate |
| Number of Battery Bays | 2 |
| Hot-Swap Support | Yes |
| Dimensions | 6 x 4 x 1.5" / 15.24 x 10.16 x 3.81 cm |
| Weight | 9.5 oz / 270 g |
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 7.6 x 5.4 x 1.7" |
