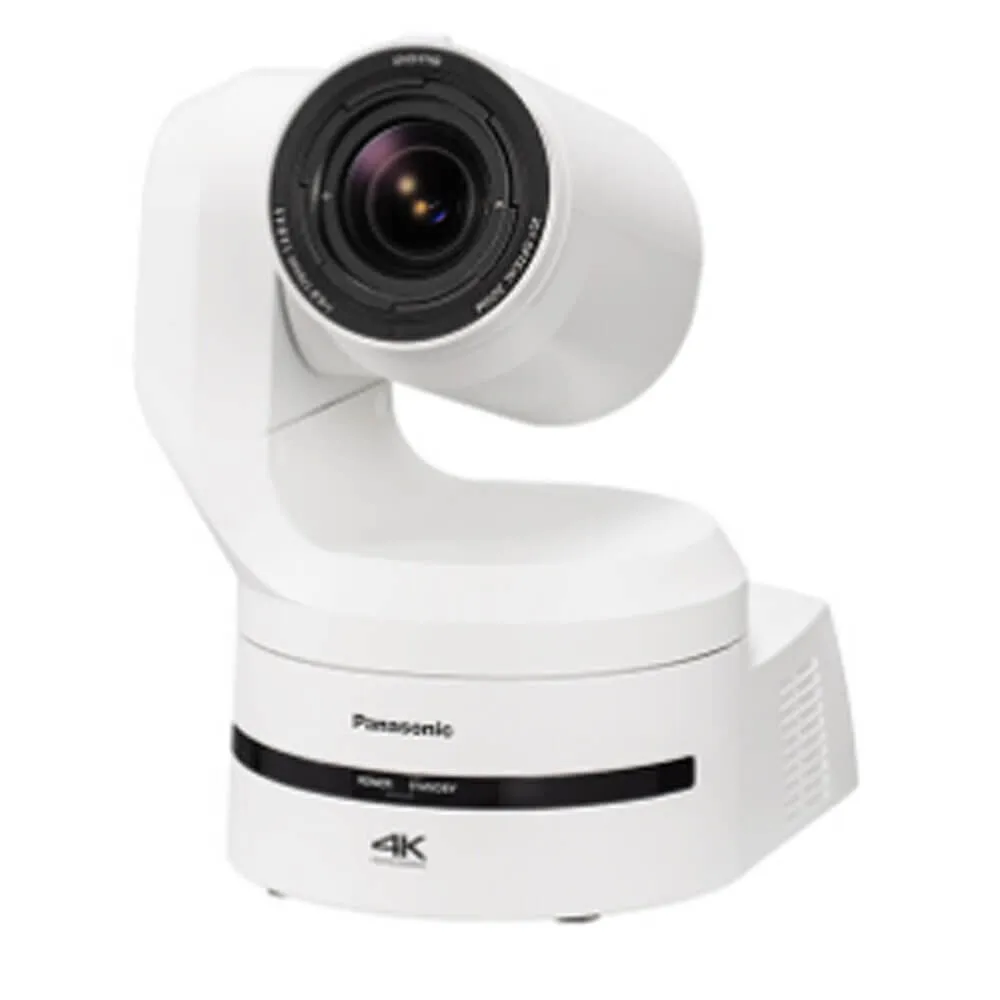

The AW-UE160 UHD 4K 20x PTZ Camera (White) by Panasonic is a high-end camera with exceptional features and superior image quality. It features a 9.6MP 1" type 4K MOS sensor, allowing for stunning 4K video at a maximum resolution of UHD 4K60. This flexible camera also has the option for dual output in UHD 4K60 and 1080p, providing versatility for any production. Additionally, it comes with built-in NDI and NDI|HX support, as well as an ST 2110 option for advanced networking capabilities.
The Panasonic AW-UE160 PTZ camera is equipped with 12G-SDI, HDMI, fiber, and IP transmission, which allows for easy integration with other devices. The improved phase-detection autofocus ensures that the camera is always in focus, even when capturing fast-moving subjects. The 20x optical zoom and 2x high-speed capture feature allows you to zoom in on distant subjects and capture them in great detail. The camera also features an HDR mode that is compatible with HLG and BT.2020, which allows for the capture of high-dynamic range video. The wide 75.1° horizontal viewing angle ensures that you can capture a wide field of view, while the pan/tilt speed of up to 180°/sec ensures that you can follow fast-moving subjects with ease.
The Panasonic AW-UE160 also has the ability to live stream to platforms via RTMP, which allows you to easily share your video content with a wider audience. The camera also has 2 XLR audio inputs and front/rear tally lamps, which makes it perfect for live production. With its advanced features and capabilities, the Panasonic AW-UE160 UHD 4K 20x PTZ Camera (White) is an excellent choice for professional video production, search for it on panasonic website to find out more and purchase.
High-Performance PTZ Camera
The Panasonic AW-UE160 PTZ camera features a rear panel tally lamp, two XLR audio output channels, and return input and high-speed shooting, making it ideal for integrating with a system camera. Additionally, it is the first remote camera to support SMPTE ST2110 and a 5G router, allowing for USB tethering. With its ability to independently set locations and angles, and comparable characteristics to system cameras, this remote camera enables unique and fresh visual expression.
Superior Connectivity
The Panasonic AW-UE160 can output through 12G-SDI, optical fiber, HDMI, 3G-SDI, and IP, offering versatile and convenient options for integration into existing imaging systems or custom solutions. It also supports audio input through two XLR channels and has the capability to output from multiple terminals simultaneously, providing unrestricted 4K operation. This allows for the combination of three primary lines (12G-SDI), a confirmation line (3G-SDI OUT1), and a monitor display line (3G-SDI OUT2).
NDI and ST 2110 Workflow Flexibility
NDI and NDI|HX are seamlessly integrated into this PTZ camera, allowing you to easily transmit high-quality video over your IP network. Additionally, an optional ST 2110 feature, along with efficient capture and return video capabilities, makes this camera a top choice for sports capture.
Image Processing Engine
The AW-UE160 PTZ camera employs the LUMIX GH6's image processing engine, which is more powerful. High-pixel image data from the 1-type (1") (effective size) MOS sensor, which balances depth of field, picture quality, and sensitivity, is processed quickly to increase S/N ratio. Through speedier computations and enhanced AF algorithms, subject detection has improved, and extremely accurate AF is obtained by distinguishing subject movement and characteristics. High video processing performance, resolution, sensitivity, and color reproduction allow for more original video expression without compromising your devotion to video image creation.
Phase Detection Autofocus
The AW-innovative UE160's AF system combines phase detection and contrast AF (contrast detection). Whether concentrating on a moving topic or many subjects, the PTZ camera's fast focusing speed and great precision allow it to track and capture in-focus photos.
AR/VR Positioning with FreeD Protocol
Accurate camera positioning data is needed to use VR or AR studio sets in live productions. The FreeD protocol allows the AW-UE160 to output Pan/Tilt/Zoom/Iris data straight to your tracking system via Serial (RS 422) and IP (UDP). Most virtual set systems, including Brainstorm, Ross UX XPERIENCE / Xpression, The Future Group Pixotope, Vizrt Viz Virtual Studio, and Zero Density, support the FreeD protocol. Robotic camera systems can be integrated into virtual studios/sets without encoders using the UE160's FreeD command.
Reduction (OLPF)
Integrated Optical Low Pass Filter in Panasonic AW-UE160 (OLPF). This feature addresses moiré, a major issue with popular LED walls. Moiré is the difference between image light and LED gap darkness. Our optical OLPF feature blocks high-frequency information and smooths the surface area for high-quality video output.
Low-Light Performance
F14/2000 lx's high sensitivity lets it capture excellent, clean photographs of moving subjects in dimly light stages and live settings. The situation and location determine the sensitivity setting: Normal or Low Light.
