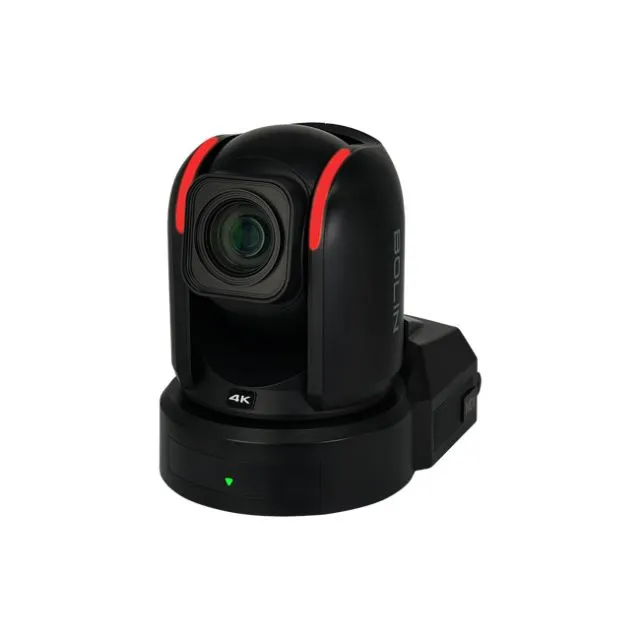

Bolin Technology R9-420N 4K60 NDI 6-Ready PTZ Camera (Black)
Bring UHD 4K quality video to your production with the blackR9-420N 4K60 NDI 6-Ready PTZ CamerafromBolin. This versatile PTZ camera outputs up to UHD 4K60 via 12G-SDI, HDMI, and IP streaming. It features a large 1/2.8" CMOS sensor with 8.29MP image capture, a 20x optical zoom, an additional 16x digital zoom, a built-in tally light, and a wide 78.6° angle-of-view. This model also supports NDI transmission, which allows the camera to fit right into an existing NDI network, and it is NDI 6 ready.
The camera can output two simultaneous IP streams via NDI, RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to UHD 4K60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE or via an optional power adapter.
Features
- Large 1/2.8" CMOS sensor, 8.29MP
- NDI, HDMI 2.0, 12G-SDI, and IP output up to UHD 4K
- NDI 6 Ready
- 20x optical, 16x digital zoom
- Tally lights
- Audio input/output, with embedding
- Maximum 100°/s pan/tilt in high-speed mode
- Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, WebRTC
- On-screen character generator
- PoE and 24 VDC power supply options
- Optional laser IR illuminator
- Optional single-mode LC fiber module via SFP slot
Whats In The Box
- Bolin Technology R9-420N 4K60 NDI 6-Ready PTZ Camera (Black)
- Power Adapter
- Power Cable
- IR Remote Control
- Safety Cable
- RS-422/232 RJ45 Adapter
- Dust Cover
- Mounting Screw Set
- Lens Cap
